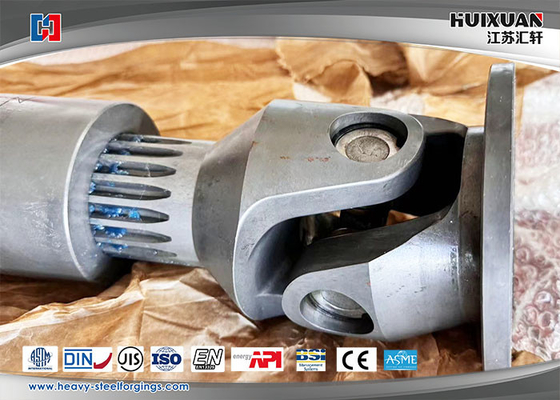

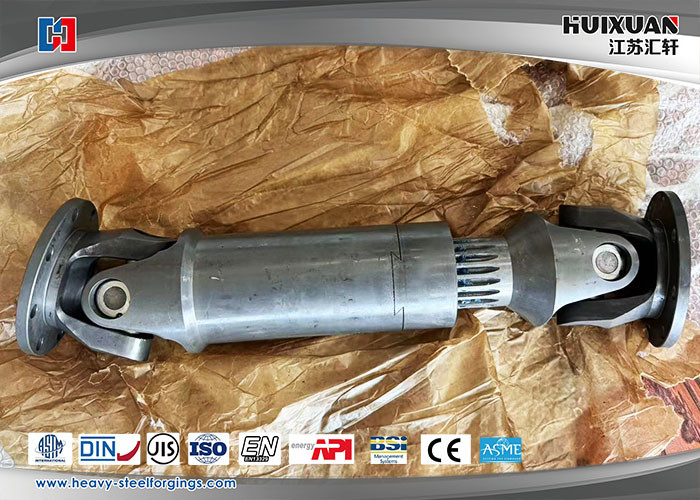

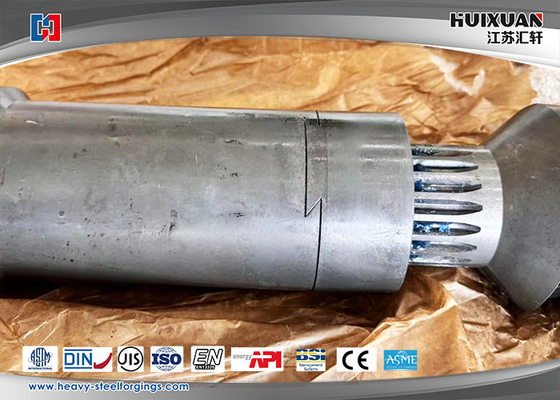

C15 1045 ASTM 4140 4340 18CrNiMo6 Universal Joint Drive Shaft Forgings

Large Image : C15 1045 ASTM 4140 4340 18CrNiMo6 Universal Joint Drive Shaft Forgings

Product Details:

Place of Origin:	China
Brand Name:	HUIXUAN
Certification:	ISO9000, TÜV, BV, LR, ABS，RINA, GL, KR, DNV, NK, PED
Model Number:	80T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Poly wood case, wood pallet, steel frame support
Delivery Time:	20-50 days
Payment Terms:	L/C, T/T
Supply Ability:	500 pc/month

Contact Now

Detailed Product Description

Application:	Machinery Parts	Model:	S58.S65,S75,S90,S100,S120,S150,S160,S180,S200,S225
Surface:	Polishing,heat Treatment,shot Blast	OEM:	Yes
Technology:	Forging	Material:	Steel

C15 1045 ASTM 4140 4340 18CrNiMo6 Universal Joint Drive Shaft Forgings

Products:

Universal shaft, coupling, universal coupling, expansion universal coupling, long expansion welding type coupling, expansion welding universal coupling, flanged universal coupling, welding free coupling, forging coupling, standard universal coupling, fourth generation universal coupling, fourth generation universal shaft. Universal joint.

Products reference:

Material	4140,4130,18CrNiMo7-6,4340,4330,1.7225,34CrNiMo6,1045
Forging equipment	8000T open die hydropress
Apply for	Transmission main shaft is used for driving force
Melting process	LF+EF+VD
Process technology	Forging+heat treatment+rough machining+finish machining
Forging ratio	≥3
Applicable standard	ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard	JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority	ISO9000, TÜV, BV, LR, ABS,RINA, GL, KR, DNV, NK, PED
Delivery terms	Rough machining(N+T); finish machining(Q+T)
Test equipment	Spectrograph, UT device, tensile and impact test machine, metalloscope,external micrometer, bore dial indicator, hardness testing device and so on.
Service	Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Custom properties

Material elements	C	Si	Mn	P	S	Cr	Ni	Mo
4140	0.38-0.43	0.15-0.35	0.60-0.90	≤0.035	≤0.040	0.80-1.10	--	0.15-0.25
4130	0.28-0.33	0.15-0.35	0.40-0.60	≤0.035	≤0.040	0.80-1.10	--	0.15-0.25
18CrNiMo7-6	0.15-0.21	0.17-0.35	0.50-0.90	≤0.025	≤0.025	1.50-1.80	1.40-1.70	0.25-0.35
4340	0.38-0.43	0.15-0.35	0.60-0.80	≤0.035	≤0.040	0.70-0.90	1.65-2.00	0.20-0.30
34CrNiMo6	≤0.34	0.25-0.30	≤0.5	≤0.035	≤0.040	≤1.5	≤1.55	≤0.2
1045	0.43-0.50		0.60-0.90	≤0.040	≤0.050

Mechainal properties	Dia.(mm)	TS/Rm(Mpa)	YS/Rp0.2(Mpa)	EL/A5(%)	RA/Z(%)	Impact energy	HBW
4140	Ø10	740~1000	450~850	≥12	≥25	≥40	≤250HBS
4130	Ø10	≥930	≥735	≥12	≥50	≥71	≤229HBS
18CrNiMo7-6	Ø15	≥980	≥785	≥9	≥40	≥47	≤269HBS
4340	Ø15	≥980	≥835	≥12	≥55	≥78	≤179HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content)Cutting Heating(Furnace temperture test) Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection) Machining Inspection(UT,MT,Visal diamention, hardness)QTInspection(UT, mechanical properties, hardness, grain size)Finish machining Inspection (dimension) Packing and Marking(steel stamp, mark) Storage Shipment

Commerce clause

Max. weight	80T
MOQ	1PC
Delivery time	20-50 days
Package	Poly wood case, wood pallet, steel frame support
Delivery terms	FOB,CIF,CFR,DDU
Payment terms	T/T, LC
Type of shipping	By ocean, air

Keywords
Various of shafts made of alloy steel, carbon steel, stainless steel that mainly used for transmission, mining equipment and so on have good mechanical properties. Drive shaft is composed by axel tube, flexible sleeve and cardan to joint or assemble the fitting parts, makes the items movable or rotation. Its usually made of light alloy steel tube that have good enduring twist.

Advantage

High-precision dimensional tolerance;
Excellent mechanical properties;
Produce different dimension based on customer’s requirements;
Advanced manufacture equipments and inspection devices;
Excellent technical personality;
Control the production procedure strictly;
Pay attention on the package protection;
Quality full service
